PPBZ-450
POLYPRINT

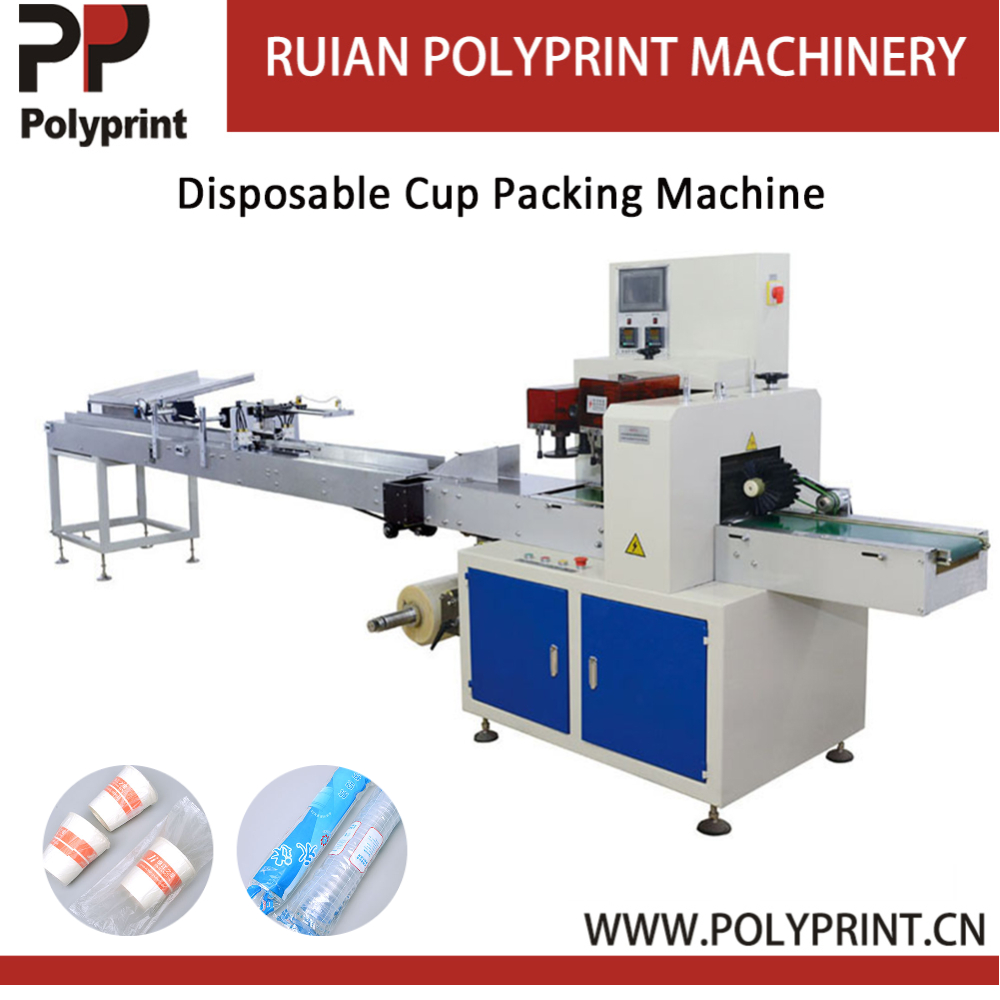

This cup counting&packing machine is designed by our company according to the market needing.It can be count&pack cups from 1 to 100 pcs(the counting range).It is controlled by PLC system and servo motor with easy operation.
Application:
It used for counting,packing disposable cups.
Feature:
1. This Machine is with PLC program control, with function of stacking, counting, bag/film sealing&cutting. (customer can order date printing machine also)
2. The main parts used in this machine are with high quality, international brand for pneumatic elements, PLC and frquency inverter.
3. Machine with stable running, easy operation features, double frequnecy inverter control, bag length cutting at random, temperature control by PID, convenient for all kinds of material bag/film
4. Cup counter is with double servo motor, double way counting, which makes output higher
5. Production speed is adjustable, cup counting range is from 1-100.
Horizontal Packing Unit:
| Max.film width | 450mm |
| Film thickness | 0.012-0.05mm |
| Packing Speed | 5-30 bags/min |
| Finished Packing Size | Length: 200-600mm Width≤90mm Height≤90mm |
| Total Power | 2.5kW |
| Machine Size | 6.3 x 0.9 x 1.5m |
| Machine Weight | 1200kg |
| Machine Voltage | 380V,50Hz(3Phases,4Wires) |
Automatic Counting Unit:
| Cup Diameter | 60-90mm,50-100mm |
| Counting Number each time | 1-100pcs |
| Max.Counting Speed | 1250pcs/min |
| Counting Lines | Single Line or Double Line |
| Total Power | 2.8kW |
| Machine Size | 6.3 x 0.9 x 1.5m |
| Machine Weight | 1200kg |
| Machine Voltage | 380V,50Hz(3Phases,4Wires) |
