PPTF-70T
POLYPRINT

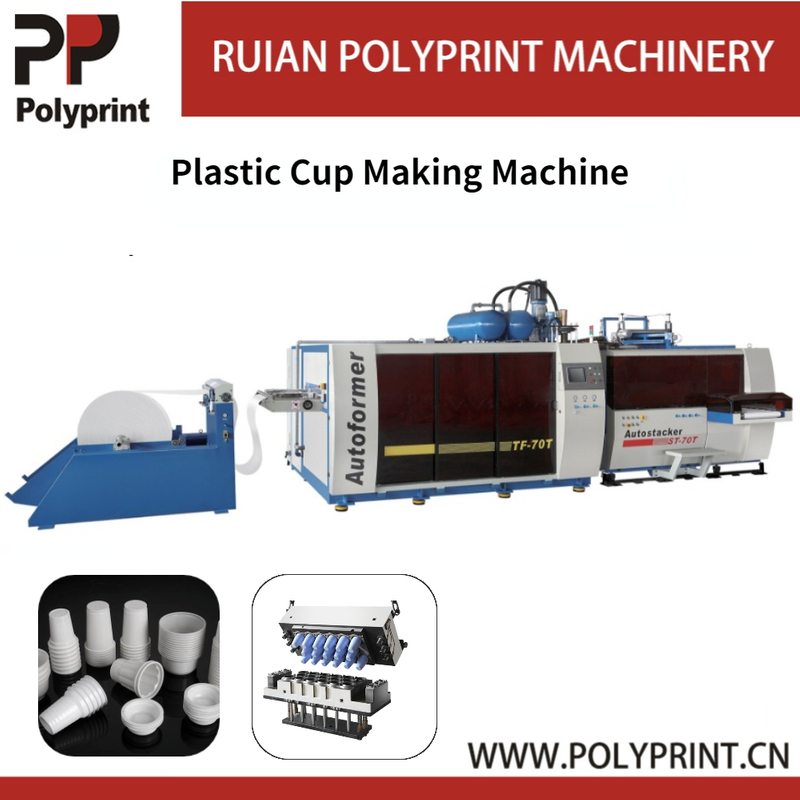

PPTF-70T Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.
Application:
It is suitable for PP,PS PLA,PET,PVC etc material.
It mainly produces the containers such as water cups,drinking cups,milk cups,bowls etc.
Features:
1.Rapid mould changing device.
2.Buffer design is adopted for the width of chain holder thus eliminating chain binding condition.
3.resulting from insufficient heating of sheet.
4.Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control.
5.Automatic stacker system.
6.PLC and humanized color touch screen control operation interface.
7.Mould automatic memory system.
Technical Parameter:
| Model | PPTF-70T | PPTF-70T-H | PPTF-80T | PPTF-80T-H | |
| 1 | Max. Forming Area | 680×320mm | 680×320mm | 762×470mm | 762×470mm |
| 2 | Max. Forming Depth | 130mm | 180mm | 130mm | 180mm/200mm |
| 3 | Max. Clamping Force | 250kN | 350kN | 500kN | 650kN |
| 4 | Max. Dry Speed | 42 cycles/min | 45 cycles/min | 42 cycles/min | 42 cycles/min |
| 5 | Max.Sheet Width | 730mm | 730mm | 820mm | 820mm |
| 6 | Sheet Thickness | 0.35-2.0mm | 0.35-2.5mm | 0.4-2.0mm | 0.4-2.5mm |
| 7 | Up/Down Oven Heating Power | 70/60kW | 70/60kW | 80/70kW | 80/70kW |
| 8 | Air Pressure | 7-8.5bar | 7-8.5bar | 7-8.5bar | 7-8.5bar |
| 9 | Total power | 150kW | 160kW | 200kW | 220kW |
| 10 | Machine Size | 12×4×3.5m | 12×4×3.5m | 13×4.5×3.8m | 13×4.5×3.8m |
| 11 | Mackine Weight | 12000kg | 12500kg | 15000kg | 15500kg |
| 12 | Industry Voltage | 380V/50Hz,3 Phase 4 Wire(other voltage can be customized) | |||
