PP-600
POLYPRINT
8477409000
Main Parameter:

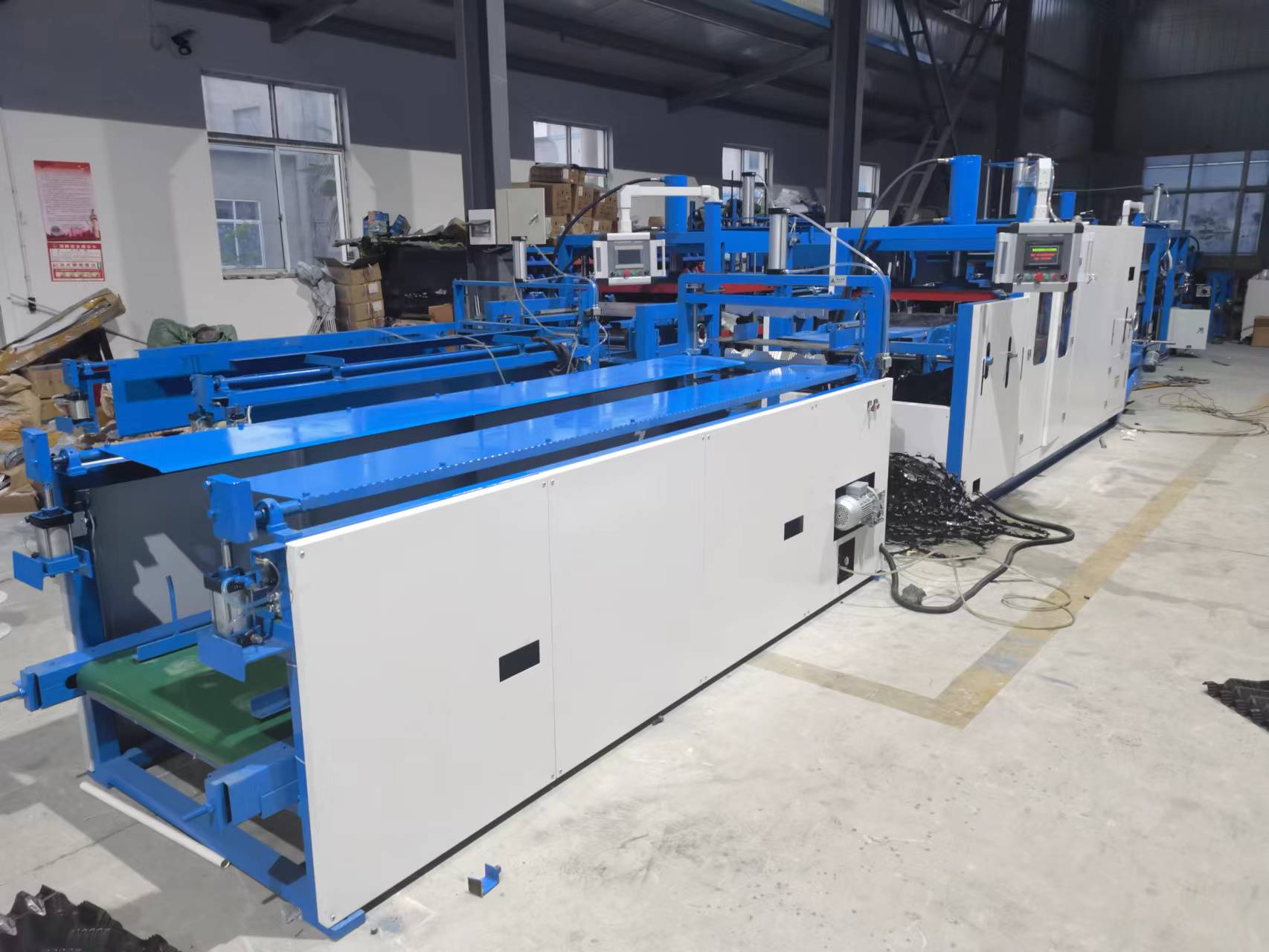

| Name | Fully automatic computer version intelligent water spray sheet press |
| Product use | Packing press molding |
| Machine structure | Upper single cylinder and lower parallel bar connecting rod |
| Machine weight | About 4.5 tons |
| Motor brand | Nanjing universal (pure copper motor) |
| Forming method | Hydraulic press molding |
| Applicable raw materials | PP,PS,PVC,PET |
| Maximum forming area | 600*1200(mm) |
| Maximum forming depth | 50(mm) |
| Power Supply | 380V50Hz |
| Power | 30kW (adjustable) |
| Forming speed | 7-12 mode / min (5-9 seconds / mode) |
| Display | Computer touch screen |
| Control | PLC program control |
| Heating mode | Stainless steel energy-saving heating tube with separate temperature control |
| Sheet drawing motor | MIG servo motor (2.6kw high torque) |
| Track material | Rail aluminum alloy edging |
| chain | Double row chain with sharp teeth |
| Cutter | Straight slide |
| Feeding system | Pneumatic feeding |
| Unique functions | Mold multiple cutting or pattern multiple cutting |
| Working principle | Heat and soften the plastic sheet, and press it into the required product through the mold. |
